PD 18W Fast Charging Adapter Celebrat C-S3-US QC 3.0 USB-A+Type-C Mobile Phone Charger

Short Description:

Model: Celebrat-C-S3-US
Dual USB interface: PD + QC3.0 , USB
Output current: 5V/3.4A (USB-A+Type-C)
Input voltage: AC 100-240V
Rated frequency: 50Hz/60Hz
Adapter Working: 47KHZ-65kHZ


Product Detail

design sketch

video

Product Tags

2

Specification

1.PC flame retardant outer covering adopts flame retardant epoxy resin material, which is wear-resistant, sturdy and high temperature resistant.

2.When the power reaches 80%, the trickle mode will be started intelligently to reduce the charging temperature. It prolongs the service life of battery and prevents the battery from being damaged.

3.Built-in intelligent chip can automatically identify the charging power of different devices and output adaptive current.

4.It is suitable for 100-240V AC power supply. It can be safely and quickly charged even you are in a foreign country.

3

5.1 fast charge with multiple options, and the output adopts two modes of USB-A+Type-C. TYPE-C port supports PD22.5W, USB socket supports QC3.0 fast charge.

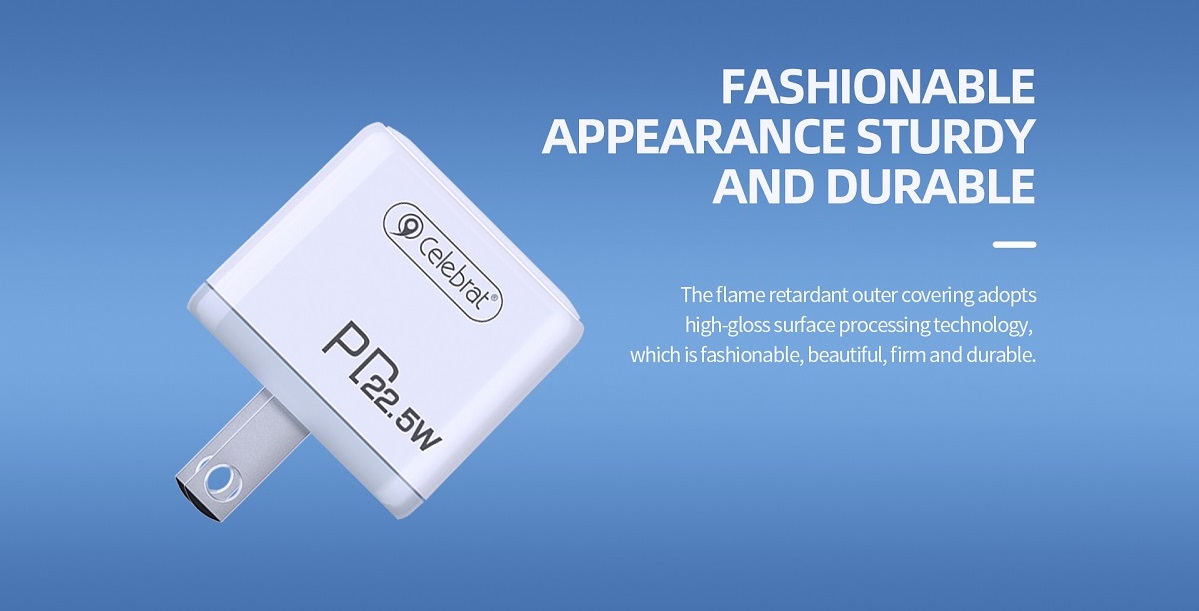

6.High temperature flame retardant material PC fireproof shell, flame retardant requirements meet UL94V-0 level. Using high-gloss surface treatment technology, fashionable appearance, strong and durable, wear-resistant, drop-resistant and high-temperature resistant, safer to use.

7.iPhone 8-13, the maximum charging power is 18W.

8.When A+C dual ports are charged at the same time, it returns to 5V output, intelligently adapts the charging current, the maximum current of the single port is 2.4A, and the total current of the dual ports is 3.4A.

9.On the basis of QC3.0, QC4/4+ added USB-PD charging speed increased by 20%, efficiency increased by 30%, and added support for PD (Type-C fast charging). 50% full in 30 minutes.

10.Small, portable and takes up no space. high-quality appearance.

4

11.According to the use status of the output port and different device protocols, intelligently adapt the charging power.

12.Multi-protocol fast charger with maximum charging power, A+C dual-port output, any single-port fast charge (A: 22.5W MAX; C: 20W MAX), when the dual ports are charged at the same time, it returns to 5V and intelligently adapts the current, which meets the latest power adapter power standards and safety requirements of many countries.

13.Intelligent current output, matching the output according to the current required by the device, preventing overcharging and protecting the battery health of the device.

14.Qualcomm QC4+ is based on USB PD3.0 and PPS, and adds compatibility support for QC3.0 and QC2.0.

5
